Lifting Solution
TRACS-16
Cut and Recover with Confidence

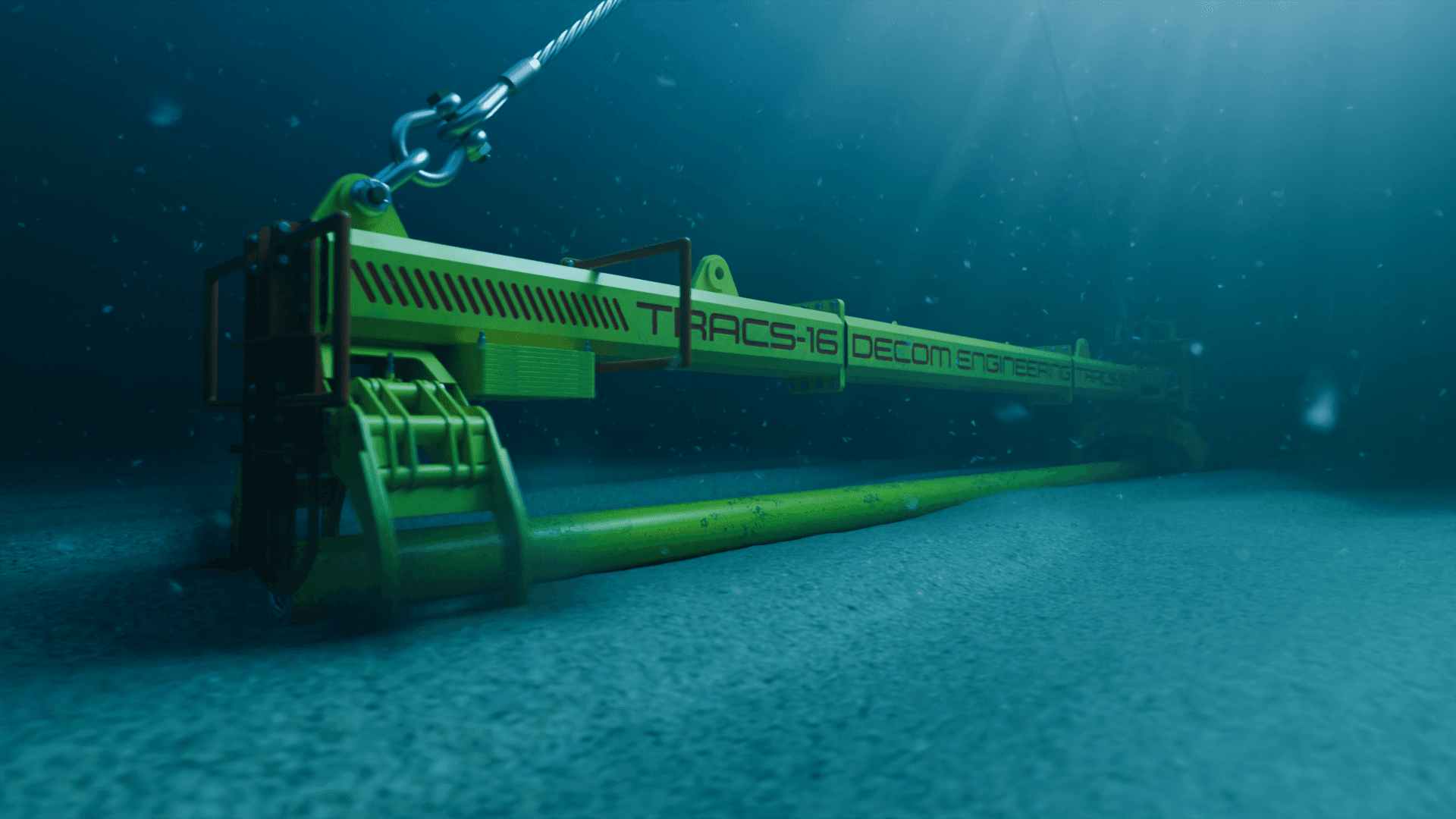

Decom Engineering's TRACS-16 (Twin Recovery & Cutting System) is an advanced subsea tool designed to cut and recover pipelines up to 20m long with diameters up to 16". Ideal for decommissioning operations, the crane-deployable tool is capable of recovering sections and returning them to the deck or relocating to a subsea basket.
Technical Specifications
TRACS-16
Key Specs
2" - 16" Cutting | 16Te Lift
Dimensions (with C1-16)
12,133mm x 1,850mm x 1,258mm
Weight in Air
Approx. 6,000 kg
Weight in Water
Approx. 5,220 kg
SWL
16 Te
Max Fluid Pressure
60 L/min @ 300 bar
Cutting Capacity
2" - 16" (50mm - 406mm)
Blade Diameter
1,040mm
Nominal RPM
60
Features
- Crane deployable for easy subsea operation
- Handles pipes up to 16" diameter and 20 metres in length
- Modular beam design for various lengths
- Quick connect system for C1-16 Chopsaw attachment/detachment
- ROV-operated or downline powered
- Pipe grabs with 16Te SWL at each end of beam
Benefits
- Reduced operational costs by saving vessel time
- Improved safety by removing need for sim-ops
- Quick saw detachment allows independent use of tools
- Flexibility with ROV or downline power options
- Simple, controlled ROV-assisted tool positioning
Applications
Pipeline and flowline cut and recovery from seabedSubsea decommissioning operationsRigid and flexible pipelines/risersSingle and bundled pipelinesROV or topside control operation
