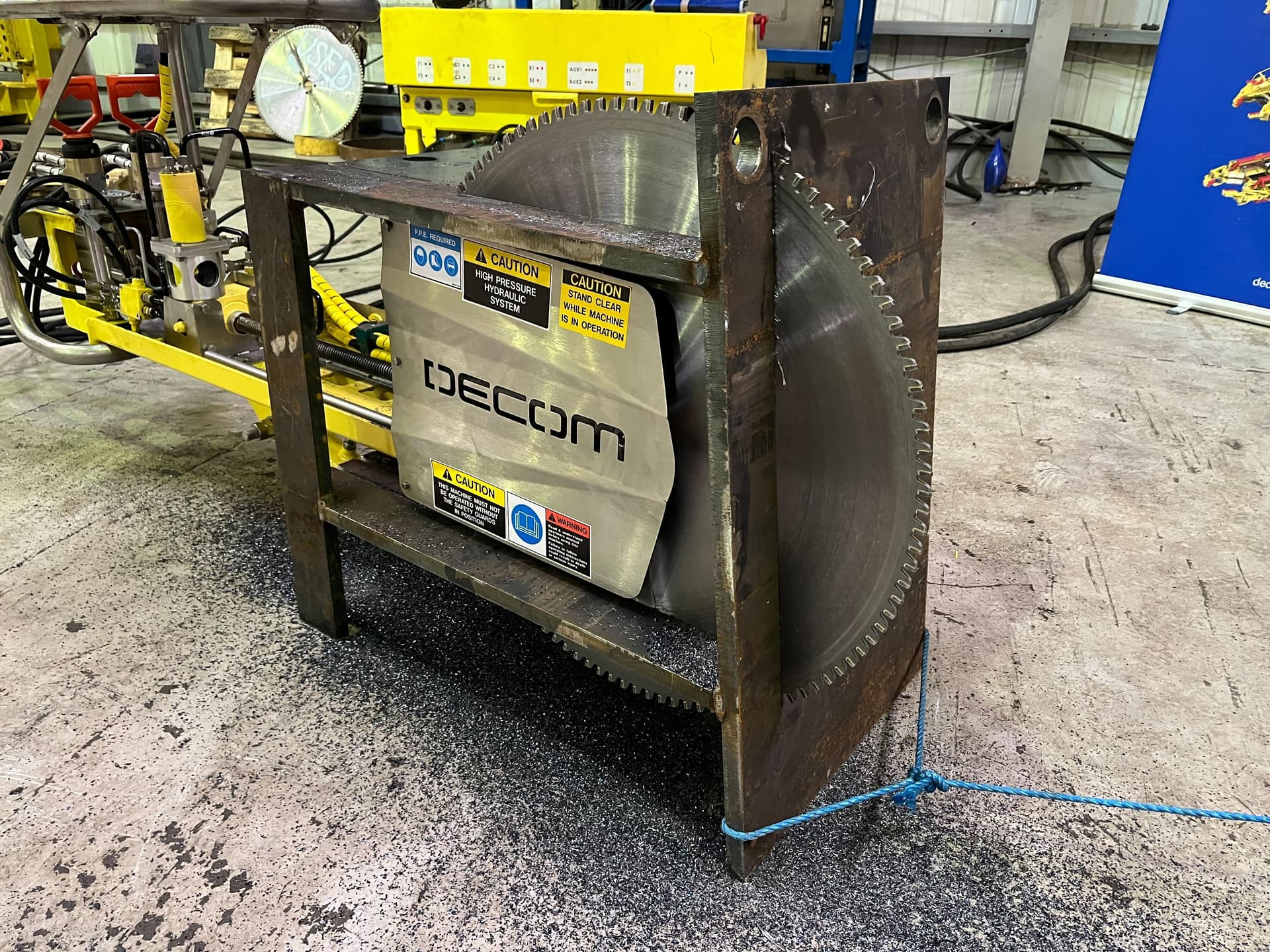

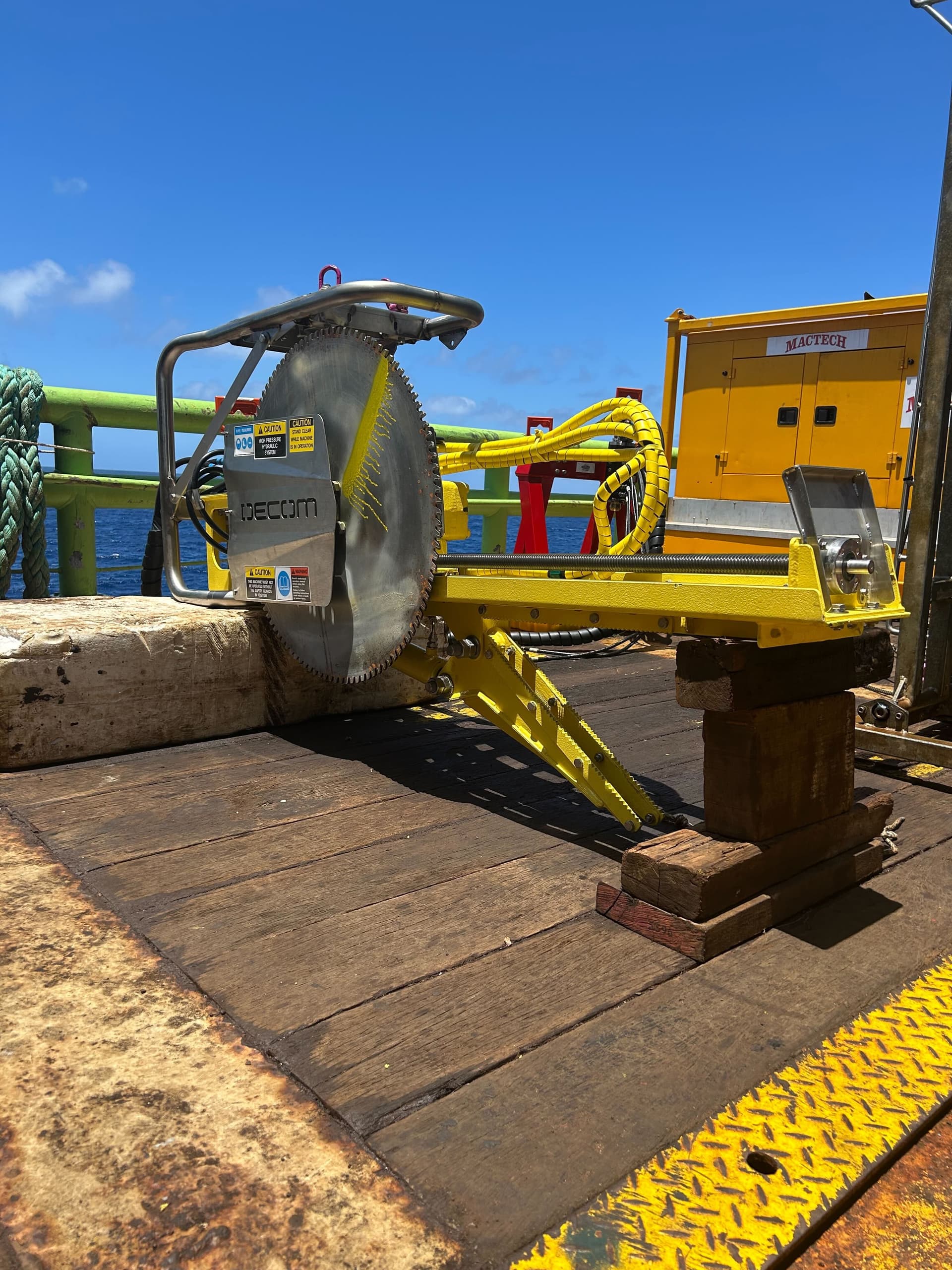

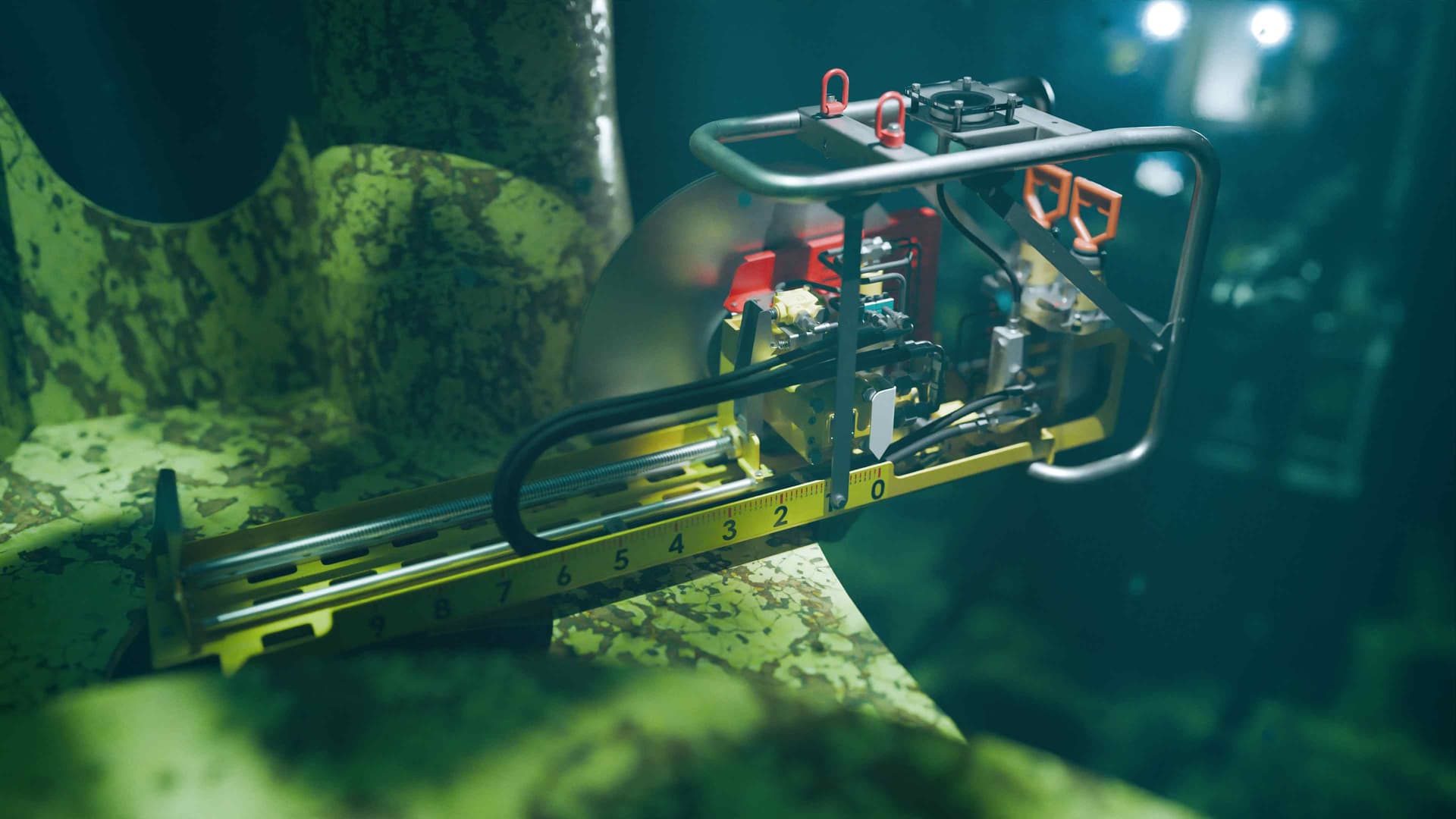

Tracksaw
Precise Linear Cutting
The Tracksaw is the latest innovation in precision cutting, designed as the first of its kind in compact cutting technology. Combining high-torque power with unmatched versatility, it is engineered for optimal performance in confined spaces and challenging environments. Fabricated from high-strength Strenx steel for durability in harsh environments.
Technical Specifications
Tracksaw
Dimensions
1,858mm x 915mm x 502mm
Cutting Track Width
350mm
Headroom Requirement
450mm
Max Cut Thickness
150mm
Max Linear Cut Length
850mm
Weight in Air
230 kg
Weight in Water
200 kg
Blade Diameter
750mm TCT
Hydraulic Requirements
60 L/min @ 210 bar
Nominal RPM
70
Features
- Compact 350mm track width, fits into tight spaces
- Customisable clamping for secure attachment to surfaces
- Subsea storage - remains clamped without hotstabs
- Dual cutting: horizontal and vertical
- High-torque hydraulic motor
- Strenx steel construction
- Travel limit switch safety mechanism
Benefits
- Fits confined spaces with minimal headroom
- Enhanced precision from secure clamping
- Cost-effective subsea storage reduces downtime
- Versatile cutting orientations
- Fast high-torque motor improves efficiency
- Long-lasting in harsh conditions
Applications
Flat plateGussetsRib platesStandard beam sections

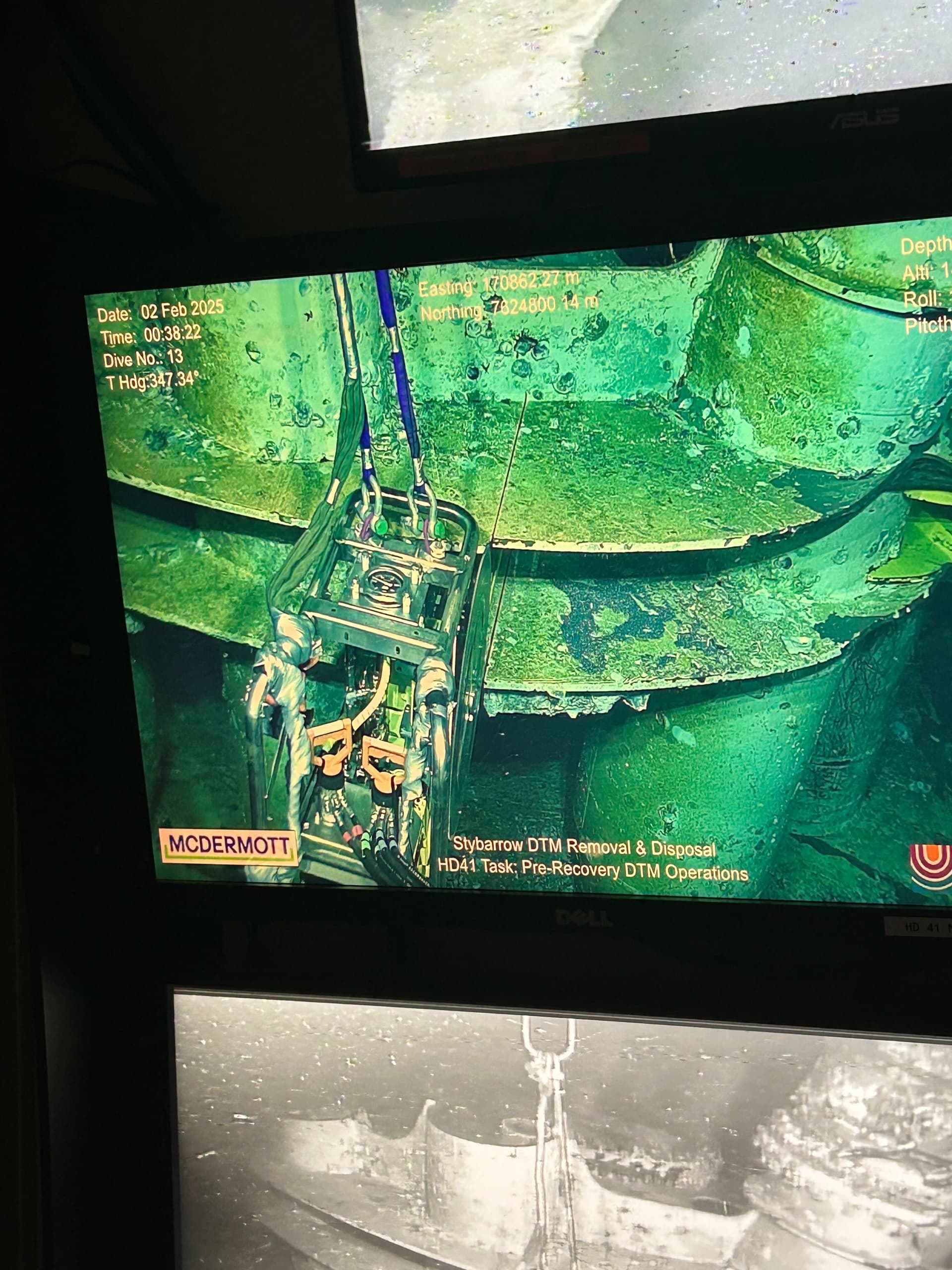

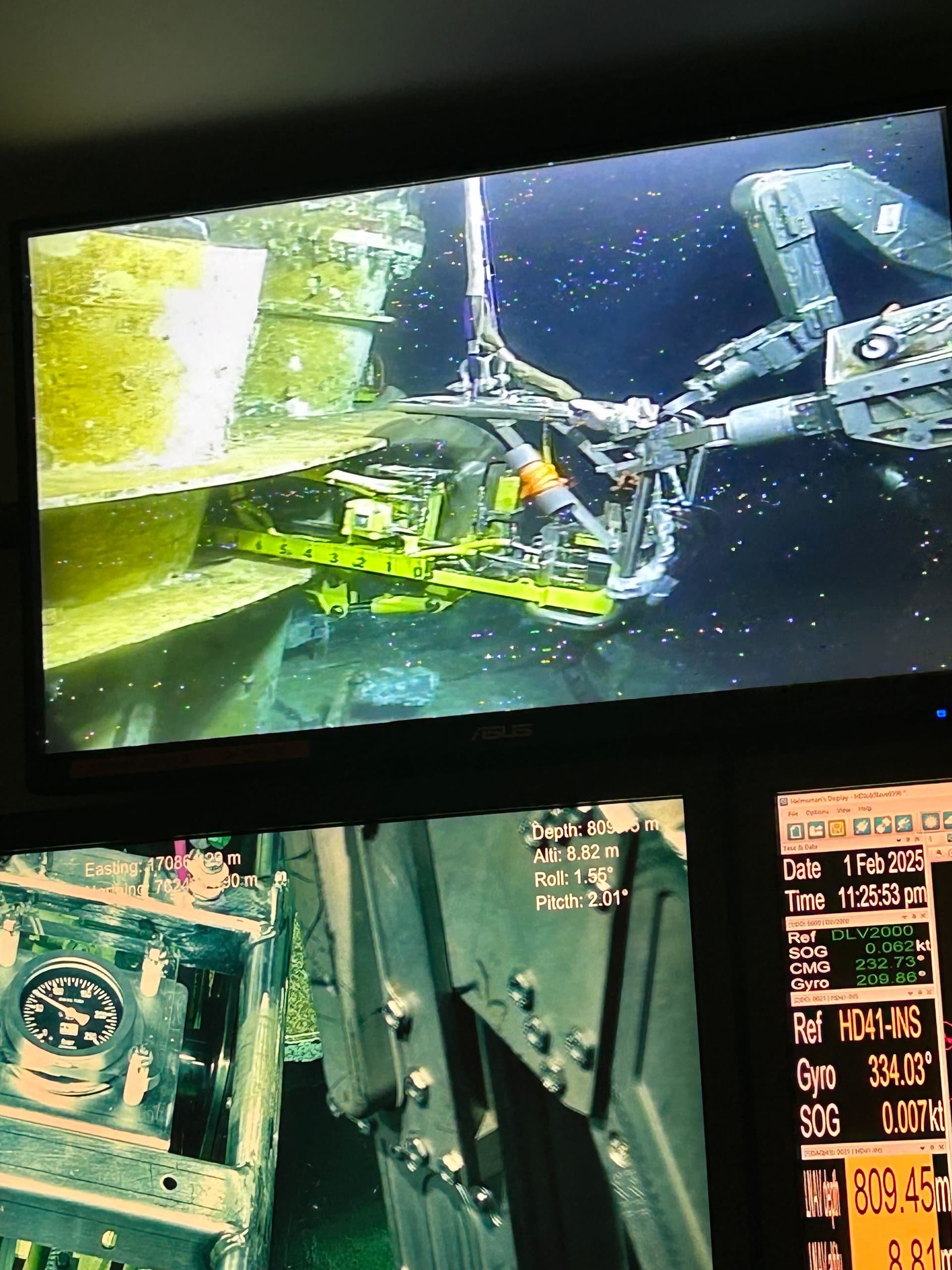

See It In Action
Deck Functioning
Gallery
