Cutting Solution

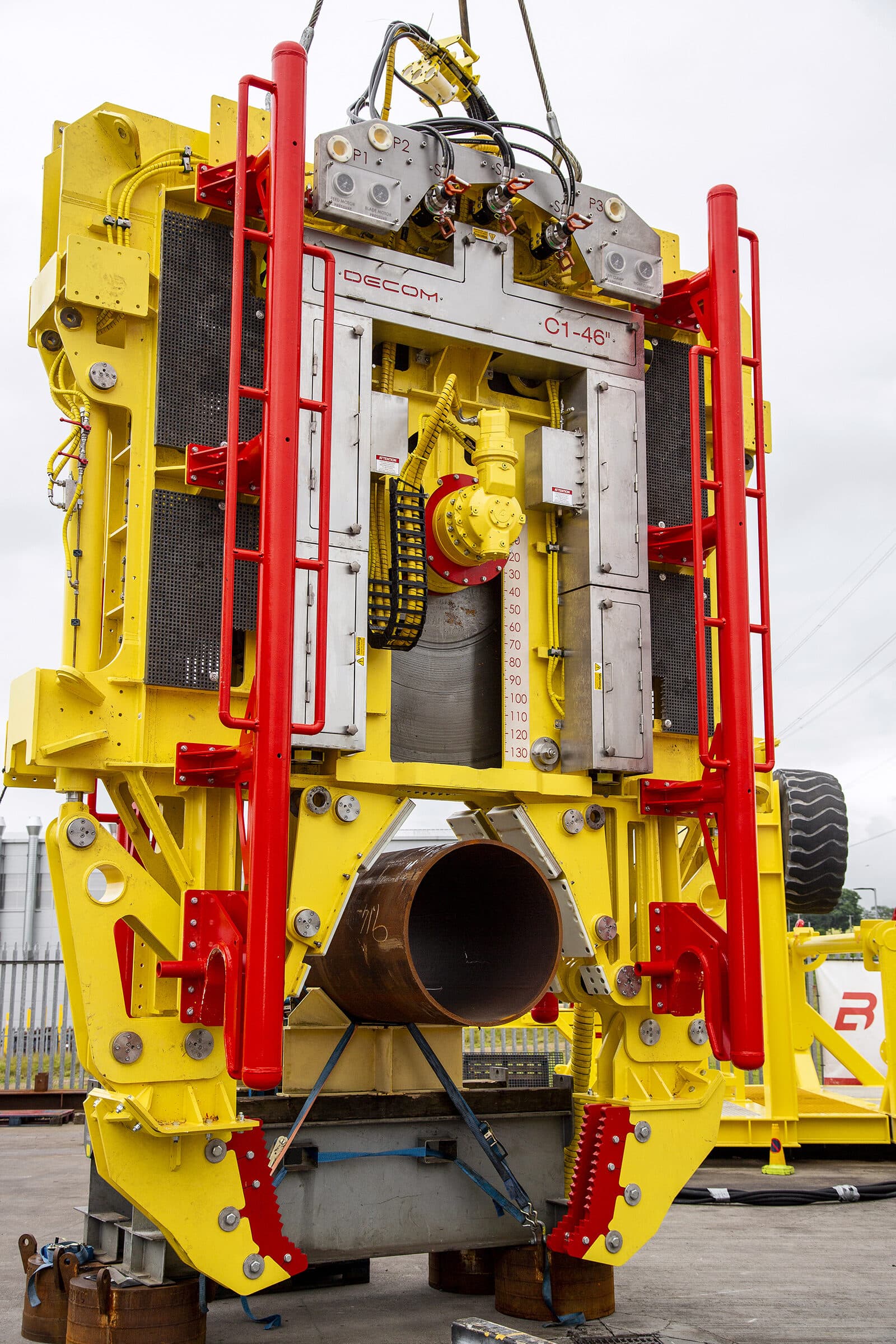

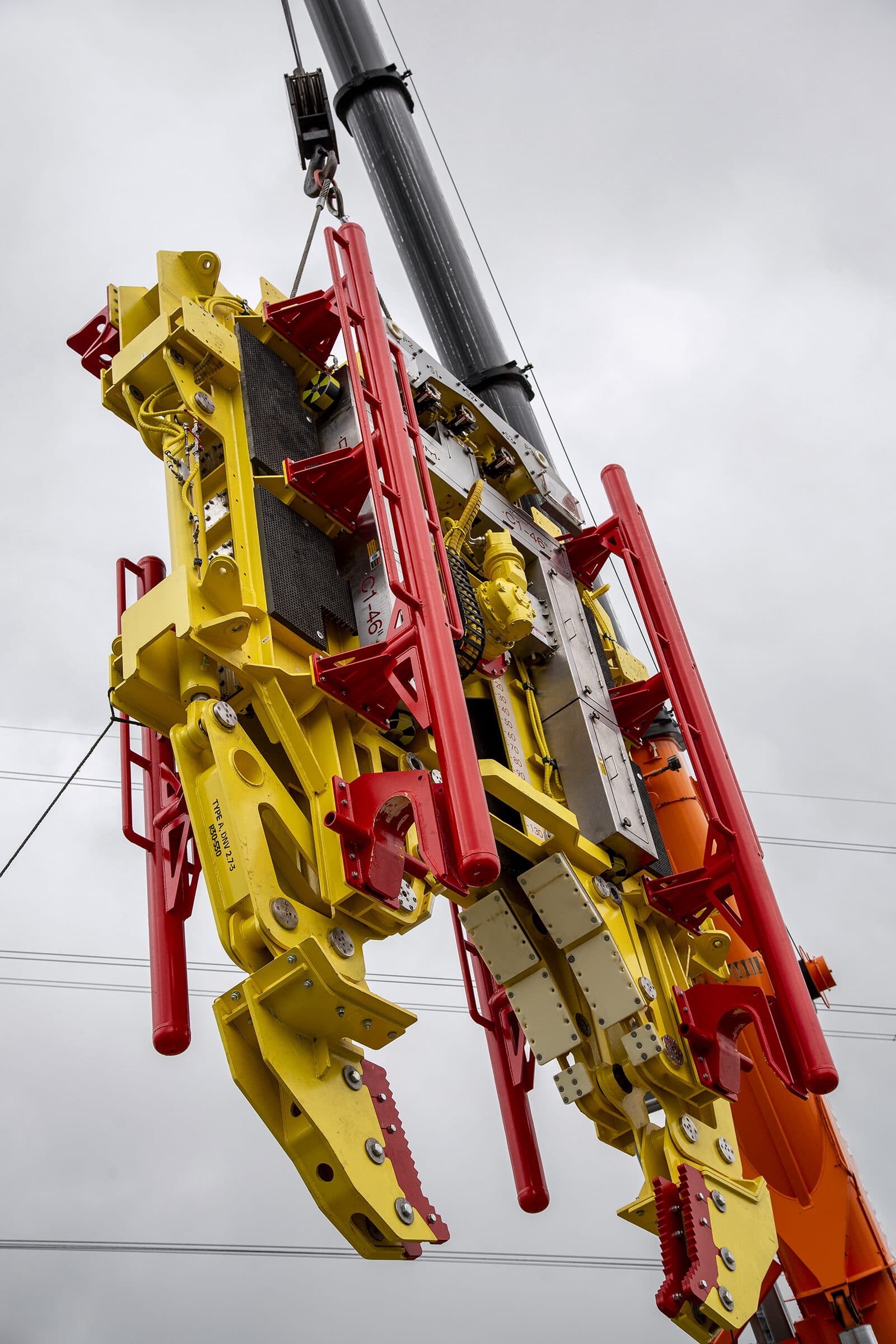

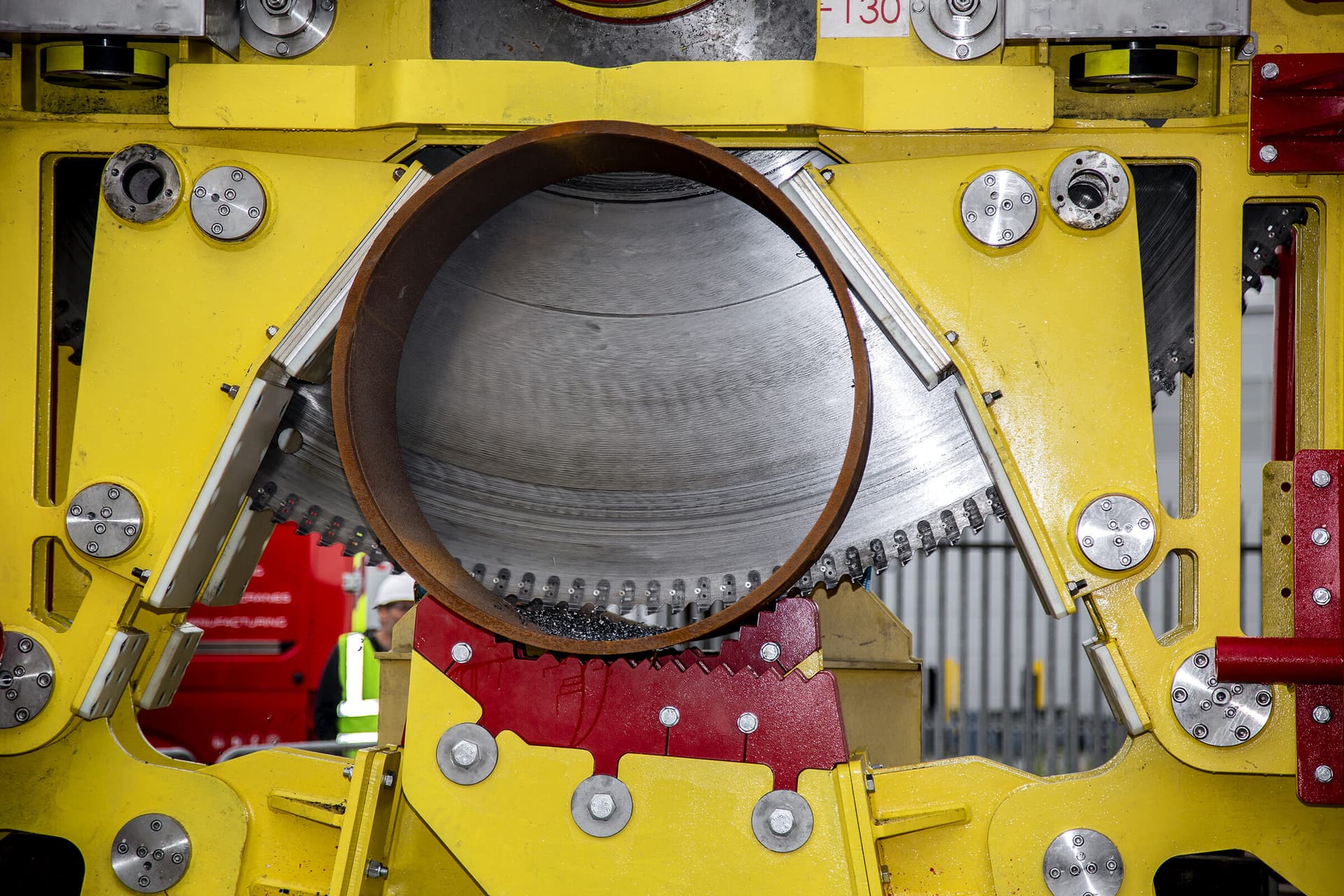

C1-46 Chopsaw
A Giant in Chopsaw Technology
The C1-46 Chopsaw was developed in response to client-led needs, setting new standards in subsea cutting technology. Designed to handle large OD pipelines up to 46" in diameter, including those with concrete coating and steel rebar, the C1-46 is a game-changer in its field.
Technical Specifications
C1-46 Chopsaw
Cutting Capacity
20" - 46" (508mm - 1168mm)
Hydraulic Requirements
200 L/min @ 210 bar
Weight in Air
14,340 kg
Weight in Water
12,082 kg
Dimensions
6000mm x 4450mm x 2000mm
Blade Diameter
3050mm
Nominal RPM
10-13.5
Features
- 20" to 46" capacity
- Fast and clean cut
- Market leading cut times
- Bespoke 'tip change' technology to minimise blade handling and waste and increase commercial benefit
- Operator-friendly control panel
- Robust shipping cage with comprehensive spares boxes
- Highly adaptable to suit surroundings and structures
- DNV certified
Benefits

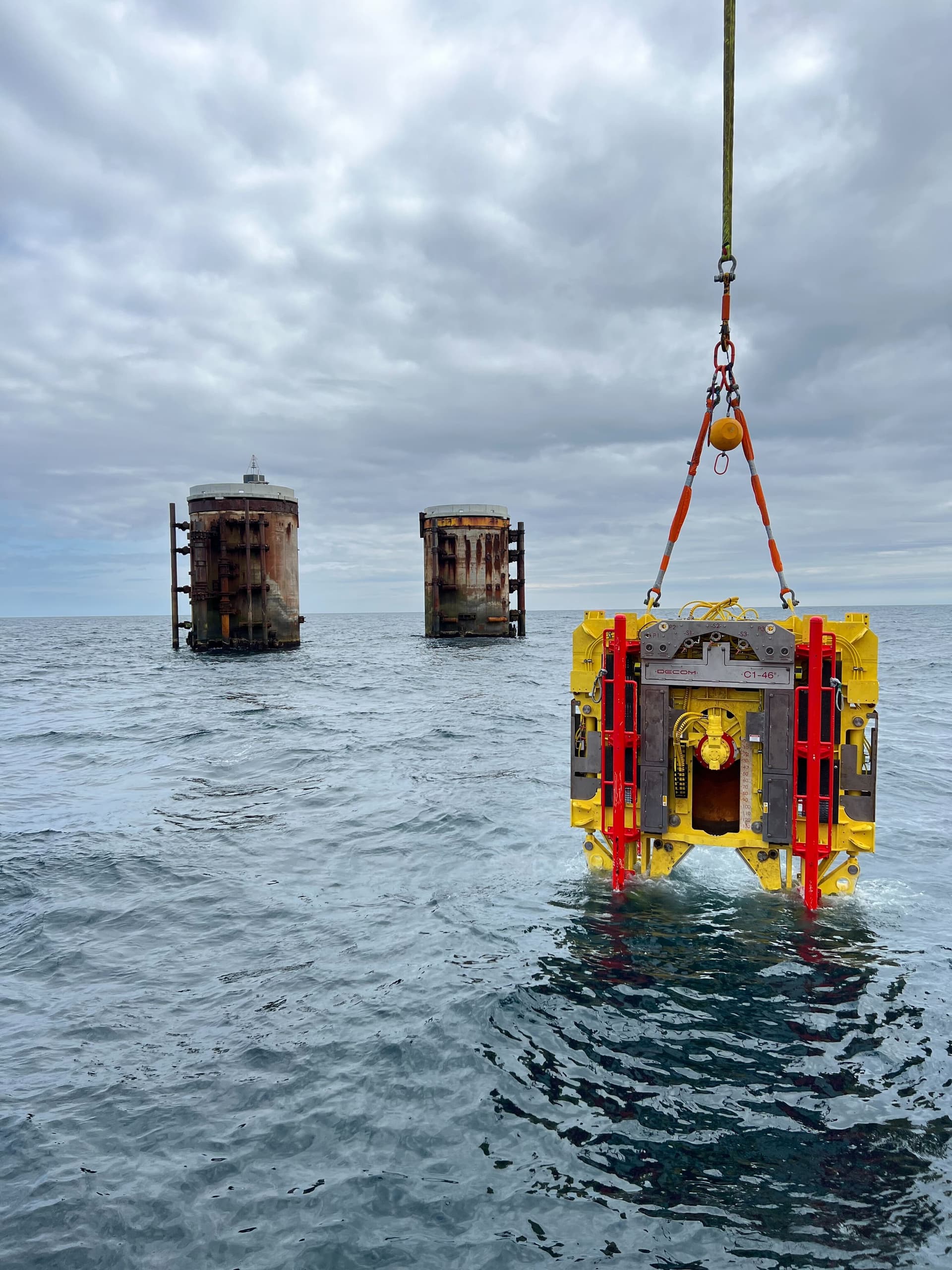

- Can complete cuts whilst subsea or in wet storage without returning to surface
- Customisable clamping system for vast array of shapes and sizes
- Blade change only takes 30-45 minutes
- Can cut vertically or horizontally
Applications
Pipe - coated or bareJacket structures, box sectionsCasingConductorsPipeline bundles

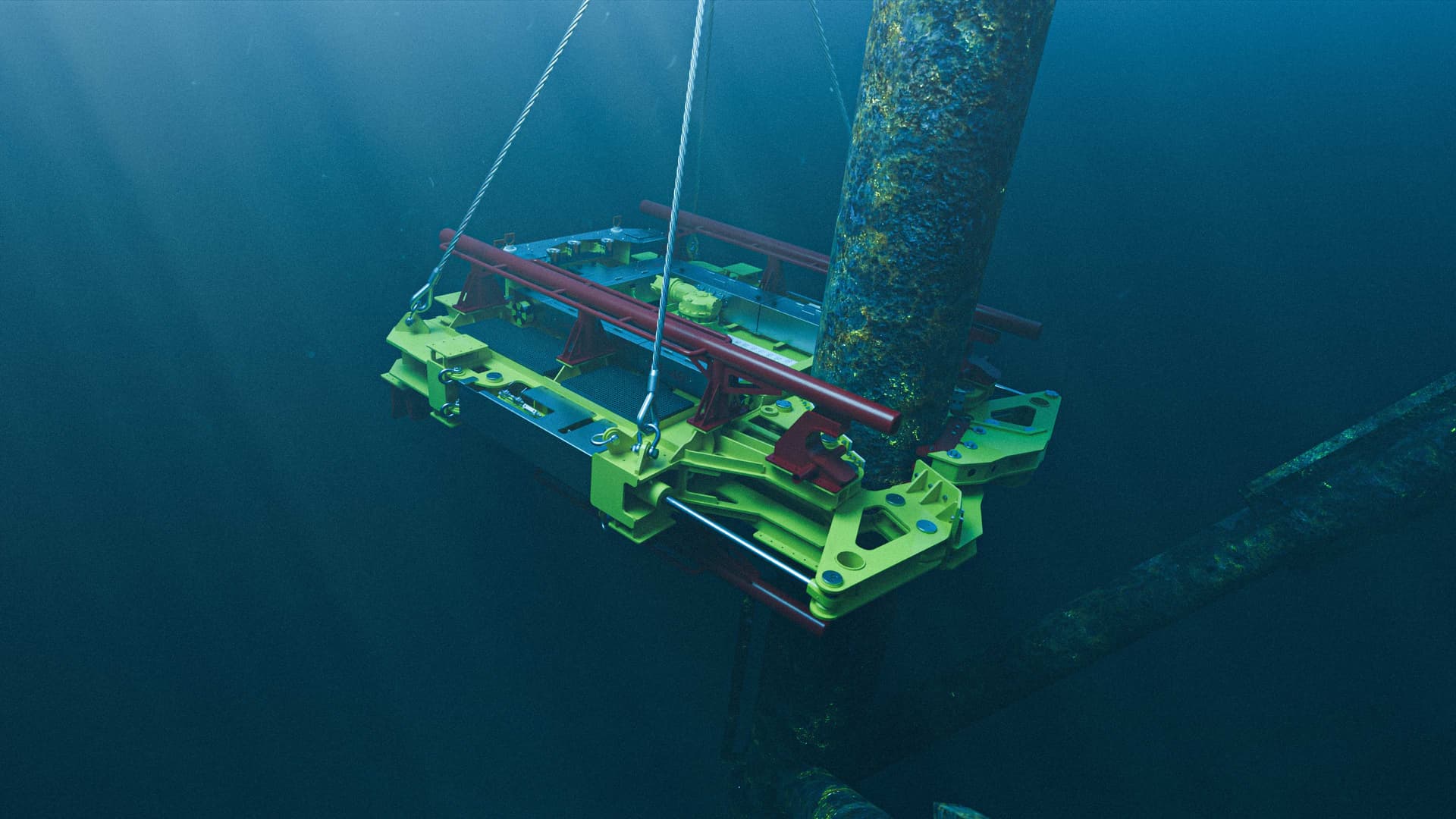

See It In Action
C1-46 from Above
Gallery
