Cutting Solution
C1-24 UL Chopsaw
Field-Tested Legacy. Lighter Frame.

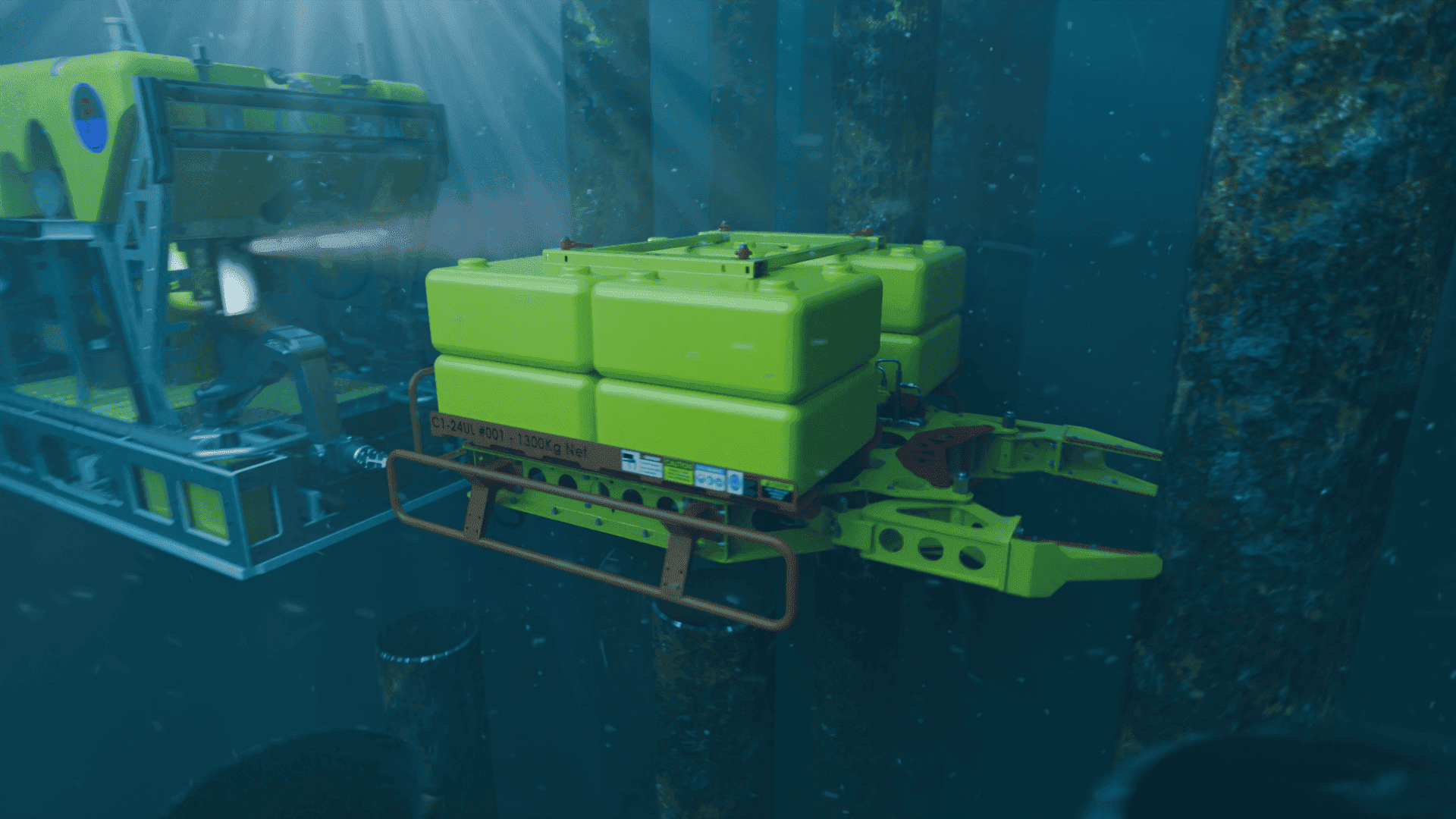

The C1-24 UL is the latest evolution of Decom Engineering's most trusted subsea Chopsaw, rebuilt from the ground up to meet industry demand for a lighter, more agile cutting solution. Neutrally buoyant in seawater and fully manoeuvrable via ROV, making it ideal for complex subsea operations where crane access is limited.
Technical Specifications
C1-24 UL Chopsaw
Cutting Capacity
2" - 24" (50mm - 610mm)
Hydraulic Requirements
60 L/min @ 210 bar
Weight in Air
1,200 kg
Weight in Water
50-100 kg (with buoyancy)
Dimensions
3000mm x 1900mm x 2050mm
Blade Diameter
1520mm
Nominal RPM
30
Features
- Ultralight frame for easier handling
- 5-minute blade replacement
- Flexible orientation - vertical, horizontal, or angled cuts
- ROV-friendly for diverless operations
- Generous cutting envelope up to 24" OD
Benefits
- Reduced vessel time with quicker launch/recovery
- Improved efficiency - clean cuts reduce need for rework
- Minimal downtime with robust blade performance
- Operational flexibility in tight spaces
- Enhanced safety with lighter frame and full ROV control
Applications
Coated or bare pipeJacket structures & box sectionsCasingJ-Tubes & RisersMooring chainsSolid barsConductorsUmbilicals & subsea cable
