Cutting Solution
C1-24 Chopsaw
The Fleet's Go-To
The Decom Engineering C1-24 Chopsaw stands at the forefront of subsea cutting technology. Engineered as our flagship model, the C1-24 has earned its reputation for delivering market-leading cut times across a diverse array of materials, including inconels, duplex, and concrete.
Technical Specifications
C1-24 Chopsaw
Cutting Capacity
2" - 24" (50mm - 610mm)
Hydraulic Requirements
100 L/min @ 210 bar
Weight in Air
3,800 kg
Weight in Water
3,600 kg
Dimensions
3033mm x 2236mm x 1002mm
Blade Diameter
1520mm
Nominal RPM
27
Features
- 2" to 24" capacity
- Fast and clean cut
- Market leading cut times
- Multiple cuts per blade: up to 100 depending on application
- Topside or ROV operated
- Unique water cooling system
- Customisable clamping system
Benefits
- 20 to 100 cuts per blade, resulting in large cost savings
- Can complete cuts subsea or in wet storage without returning to surface
- Blade change only takes 10-15 minutes
- Can cut vertically or horizontally
- Customisable clamping for vast array of shapes and sizes
Applications
Pipe - coated or bareBox sectionsCasingMooring chainSpools and JumpersSolid barsUmbilicals and cable

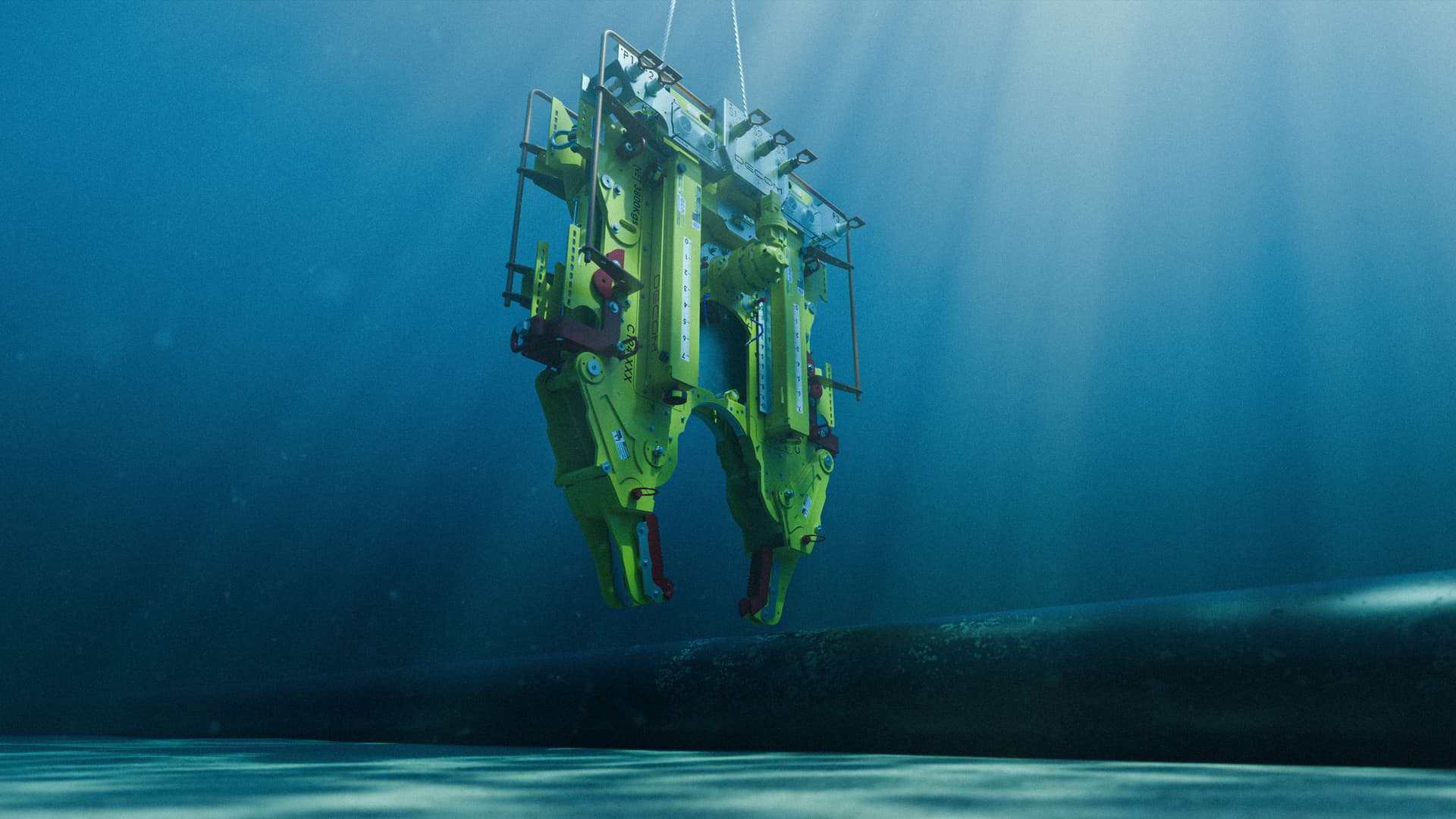

See It In Action
Blade Close Up

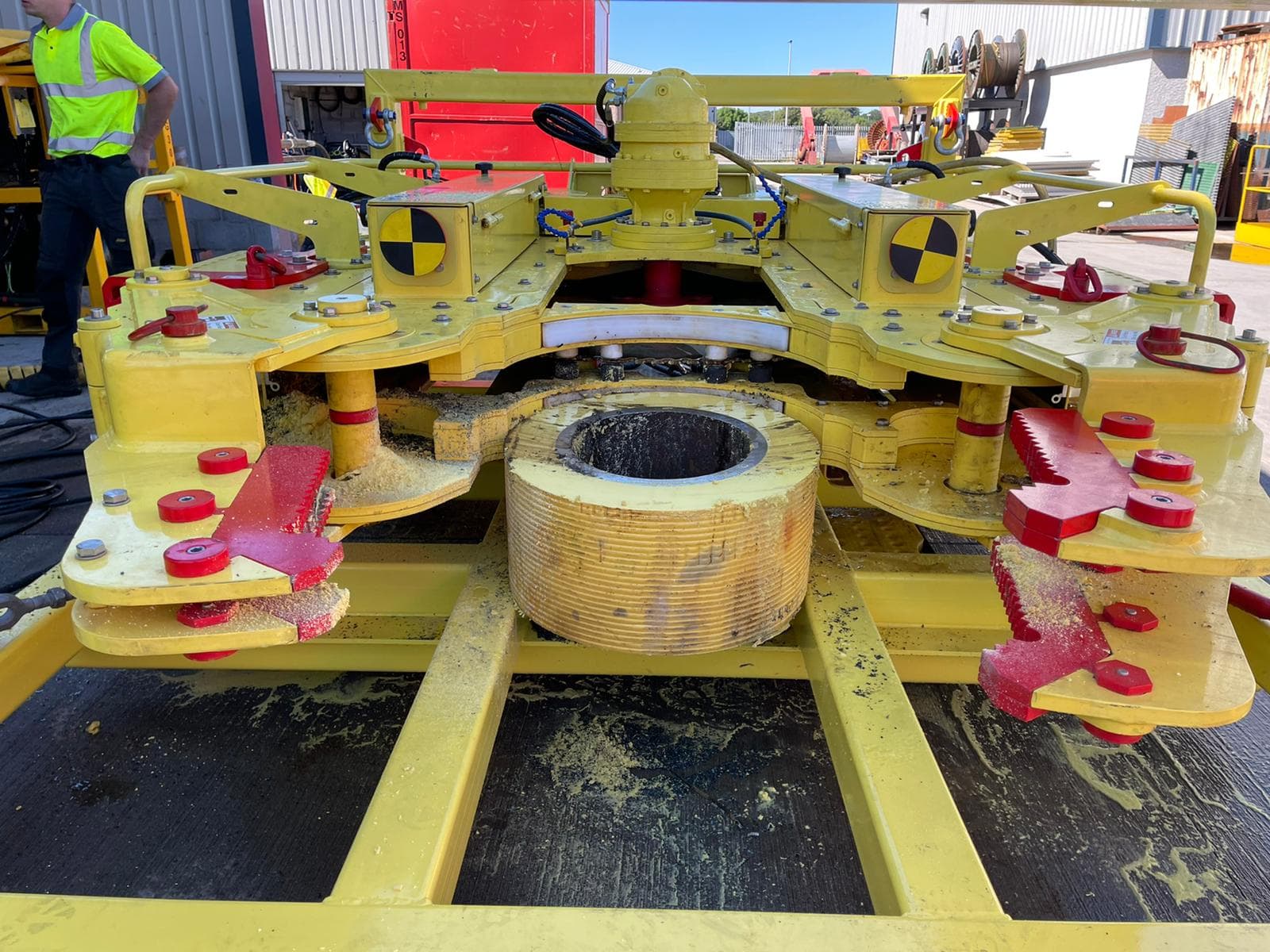

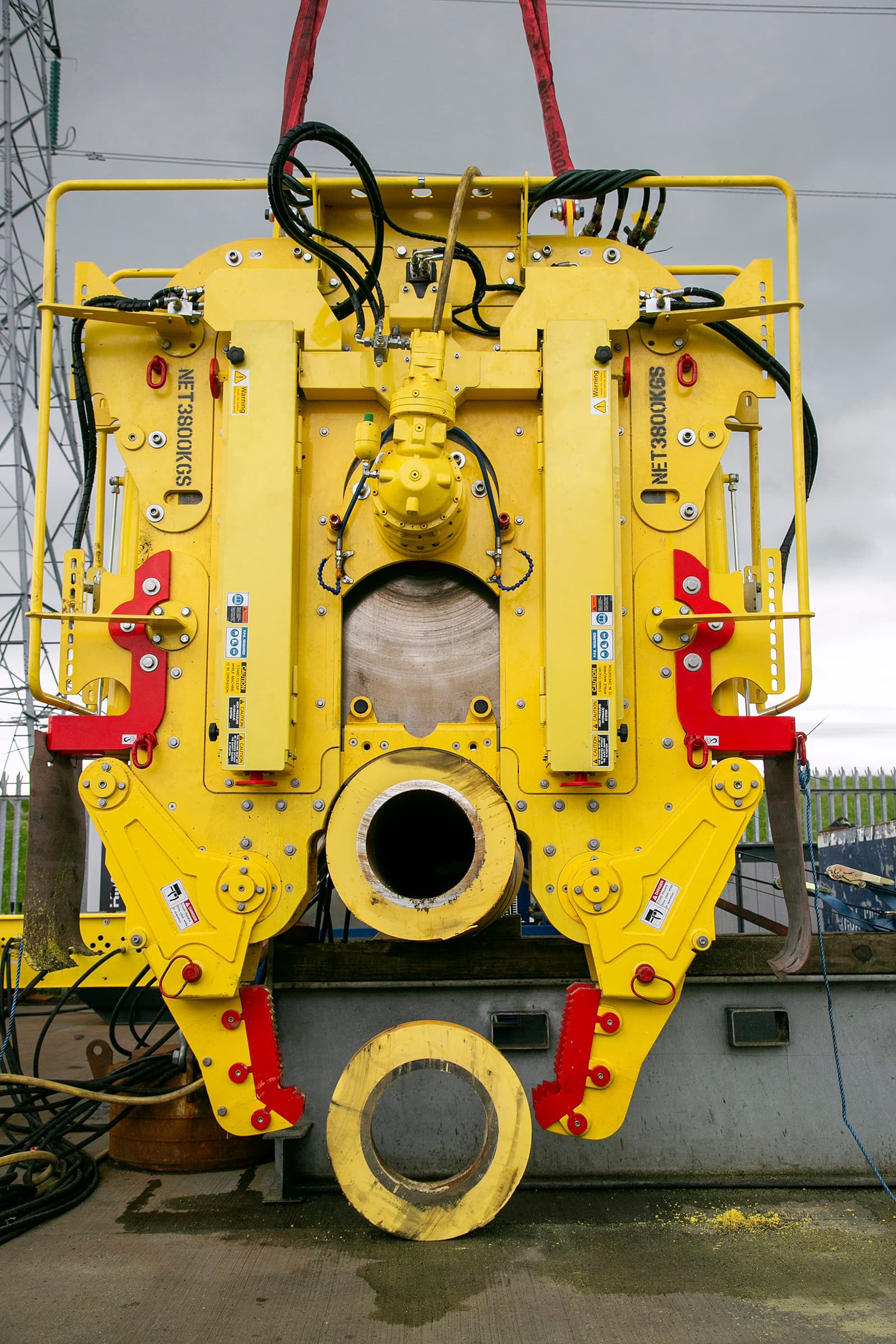

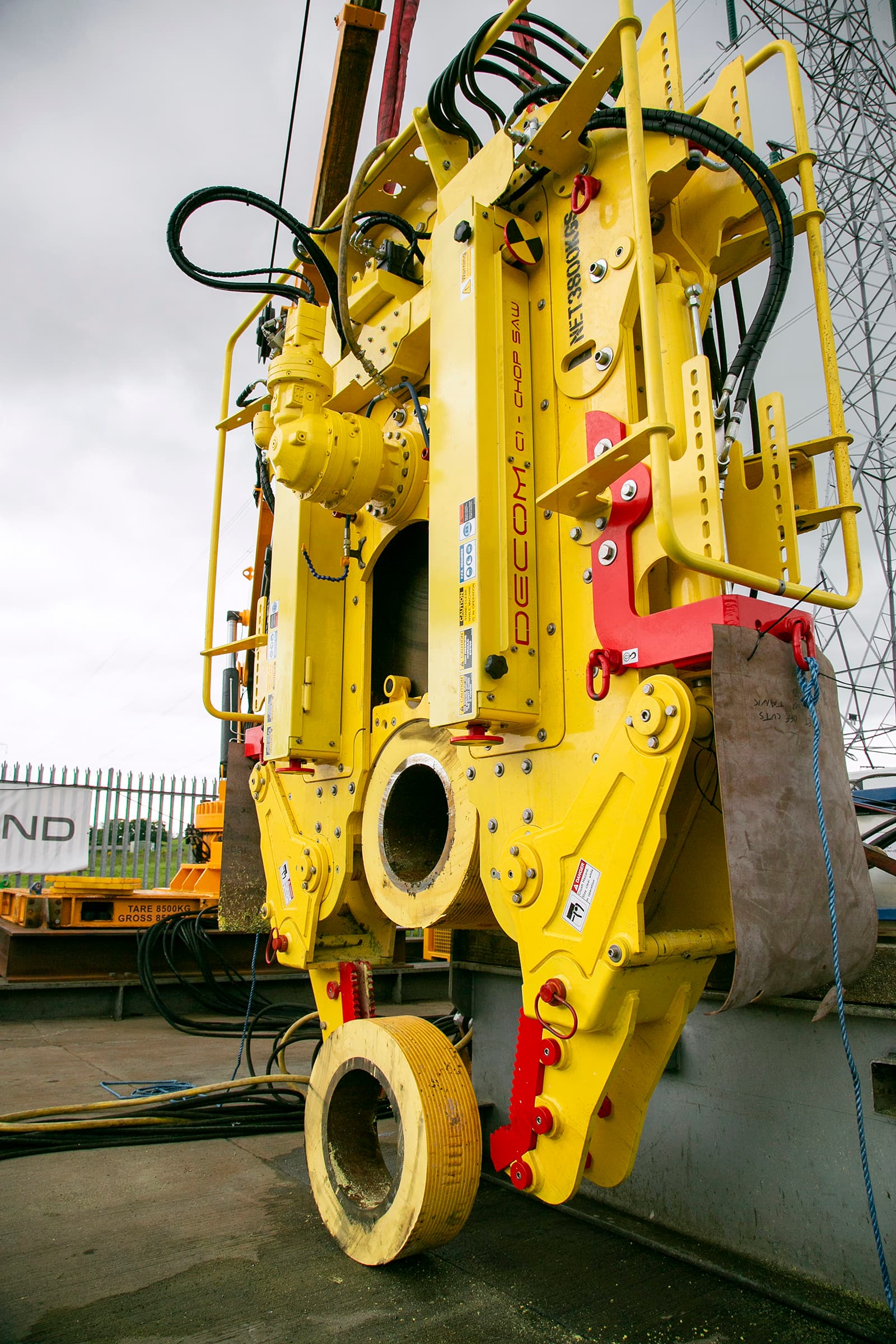

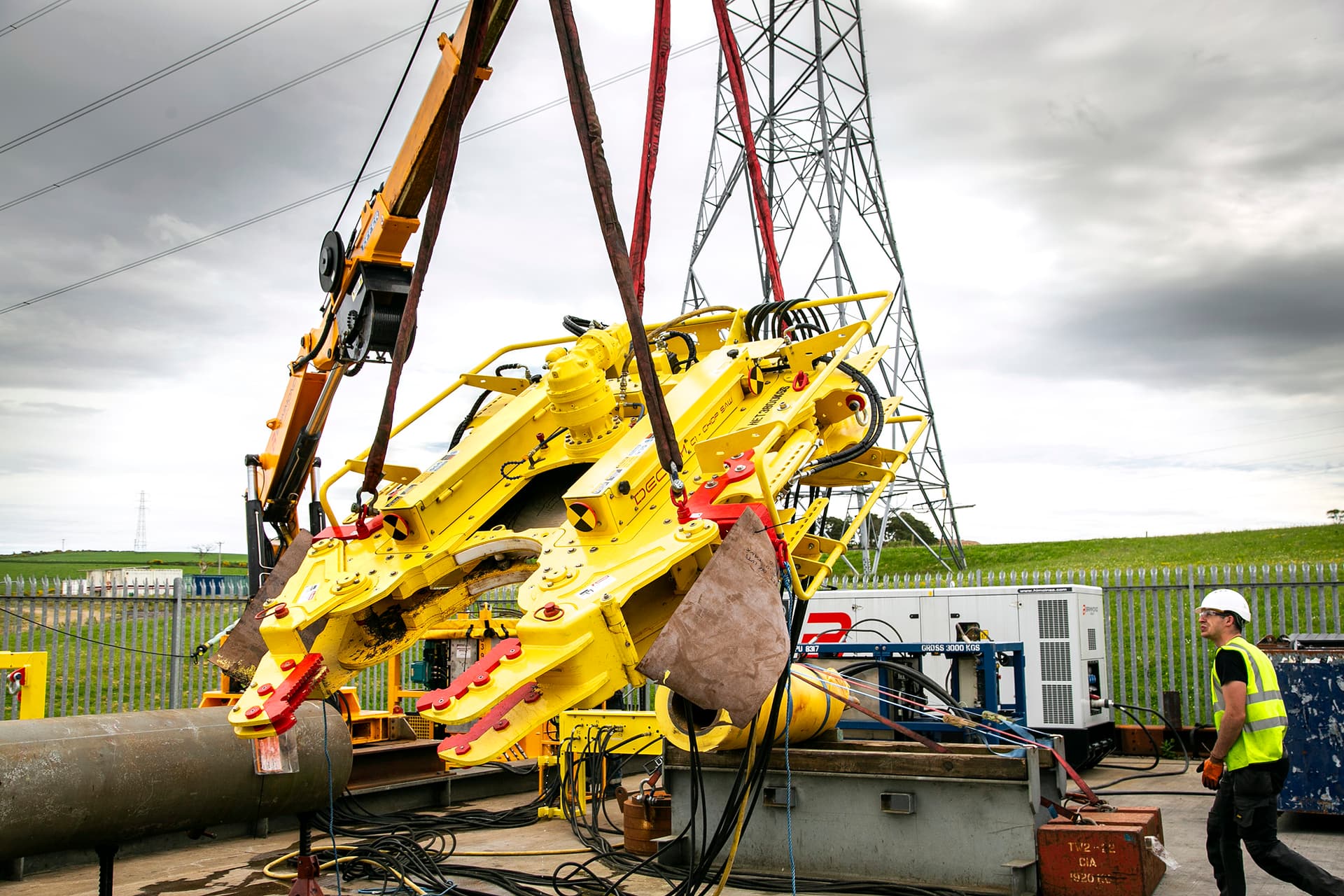

Gallery
