Cutting Solution

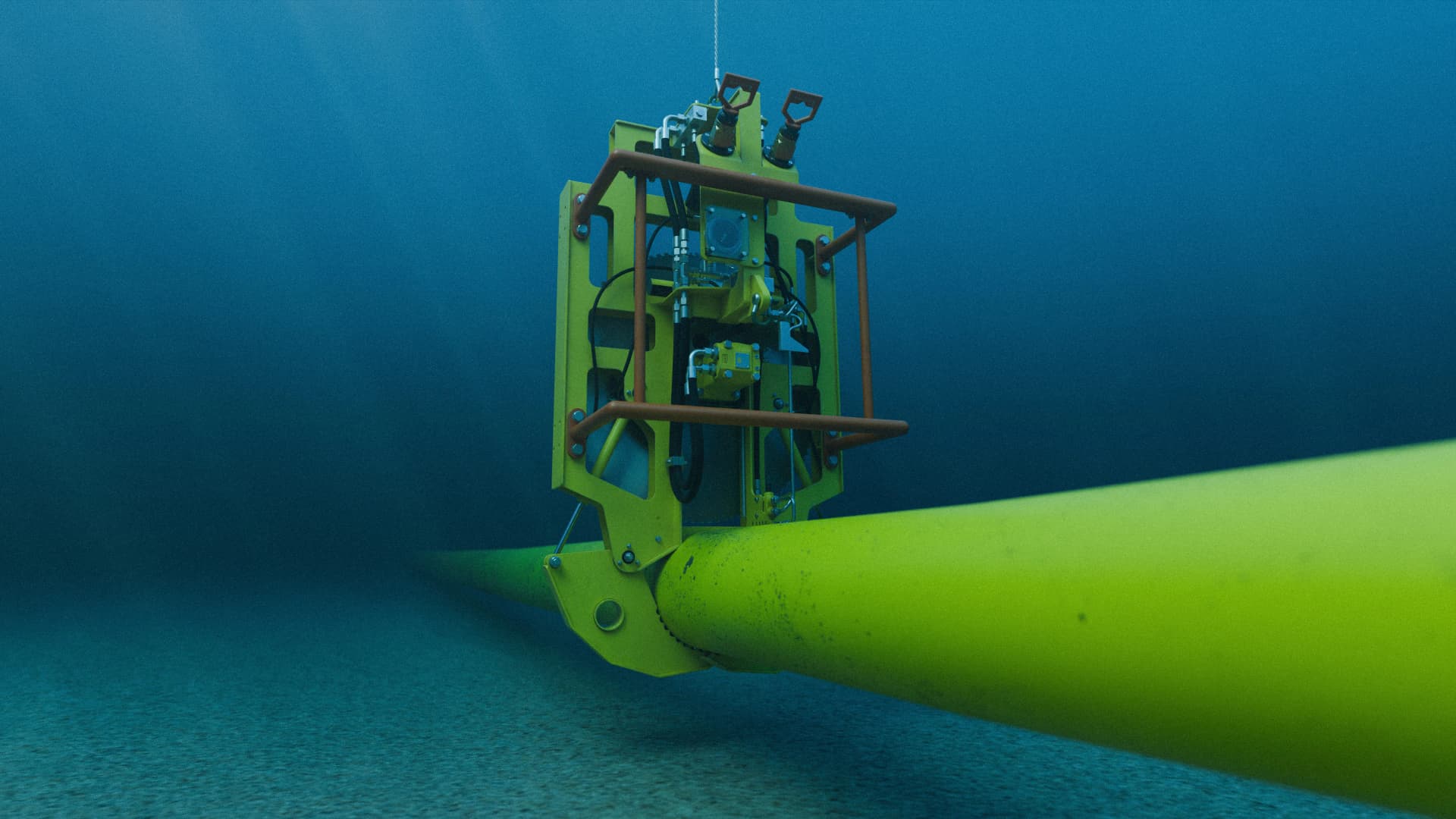

C1-16 HD Chopsaw
Our Robust Model
The Decom Engineering C1-16 Steel Frame is a purpose-built subsea cutting tool, expertly designed to handle cutting subsea pipelines, mooring chains or flexible risers as well as a multitude of different exotic materials. This model can pull/lift up to 2Te when securely clamped onto the section to be cut.
Technical Specifications
C1-16 HD Chopsaw
Cutting Capacity
2" - 16" (50mm - 406mm)
Hydraulic Requirements
60 L/min @ 210 bar
Weight in Air
500 kg
Weight in Water
460 kg
Dimensions
2000mm x 1080mm x 630mm
Blade Diameter
1040mm
Nominal RPM
70
Features
- Fast & clean cuts
- Market leading cutting times
- Can be used in combination with TRACS-16 system
- Multiple cuts per blade: up to 100 depending on application
- Topside or ROV operated
- Vertical or horizontal deployment
- Highly adaptable to specific project requirements
Benefits
- Most robust Chopsaw in the C1-16 range
- Deployable from vessel crane in vertical or horizontal orientation
- Can pull/lift up to 2Te when securely clamped
- Comprehensive spares kit included
- Operator-friendly control panel for topside cuts
Applications
Flexible flowlinesCarbon steel pipePU coated pipeSuper duplex materialsInconel materialsMooring chainFlexible risersSubsea cable
