Cutting Solution
C1-10 Chopsaw
Built for Subsea Precision

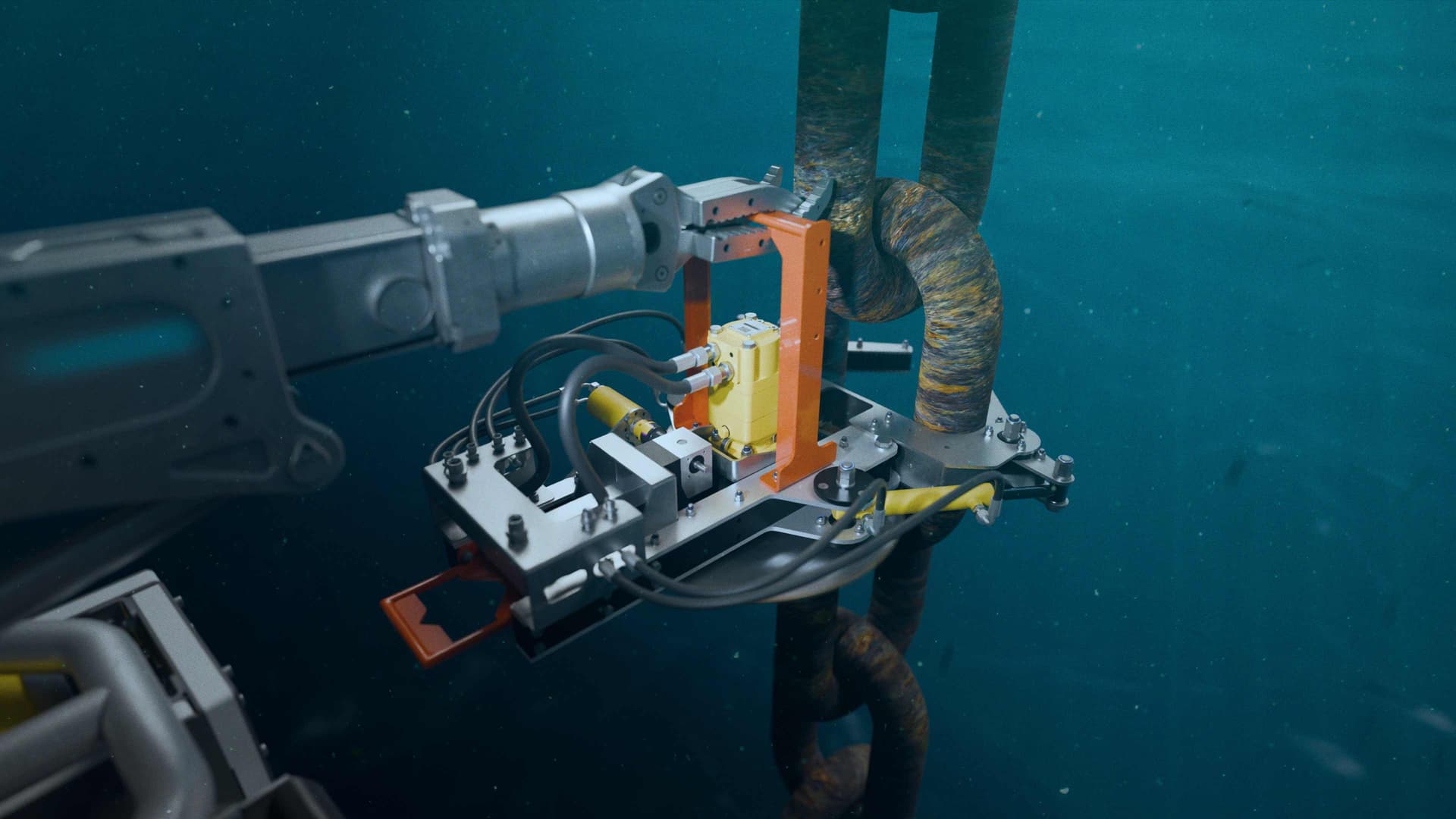

The Decom Engineering C1-10 is a purpose-built subsea cutting tool for cutting pipe and mooring chains under tension, often found beneath floating structures, riser turret moorings (RTMs), and deepwater tensioned moorings (DTMs). Decom's most compact saw to date, deployed by ROV Manipulator or ROV Basket.
Technical Specifications
C1-10 Chopsaw
Cutting Capacity
Chain up to 120mm | Tubulars 1" to 10"
Hydraulic Requirements
35 lpm @ 210 bar
Weight in Air
90 kg
Weight in Water
70 kg
Water Depth
0-3,000m
Dimensions
1488mm x 767mm x 537mm
Blade Diameter
750mm
Nominal RPM
60
Features
- Most compact saw in the range
- Deployed by ROV Manipulator or ROV Basket
- Cuts in hard to reach places
- TCT blade for fast, clean cuts
- Quick 5-minute blade changes
- Rated to 3,000m water depth
Benefits
- 5 to 30 cuts per blade depending on application
- Cuts in any orientation for operational flexibility
- ROV deployed, eliminating need for crane
- Crane-free operation in restricted access areas
- Quick 5-minute blade changes minimise downtime
Applications
Mooring chain (in tension or slack)Flexible flowlinesFlexible risers (in tension or slack)Carbon steel pipePU coated pipeSuper duplexRestricted crane access cuttingInconels

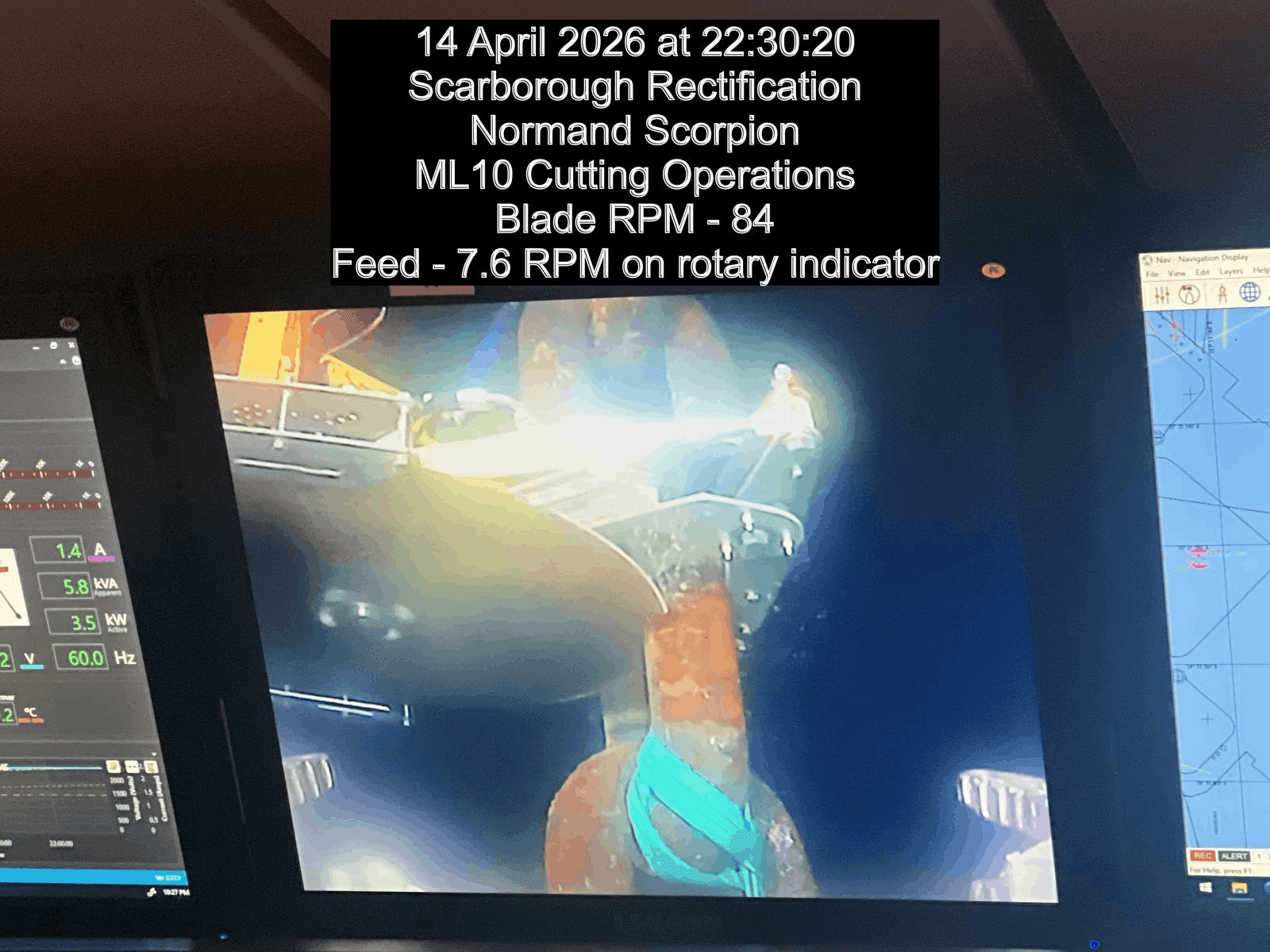

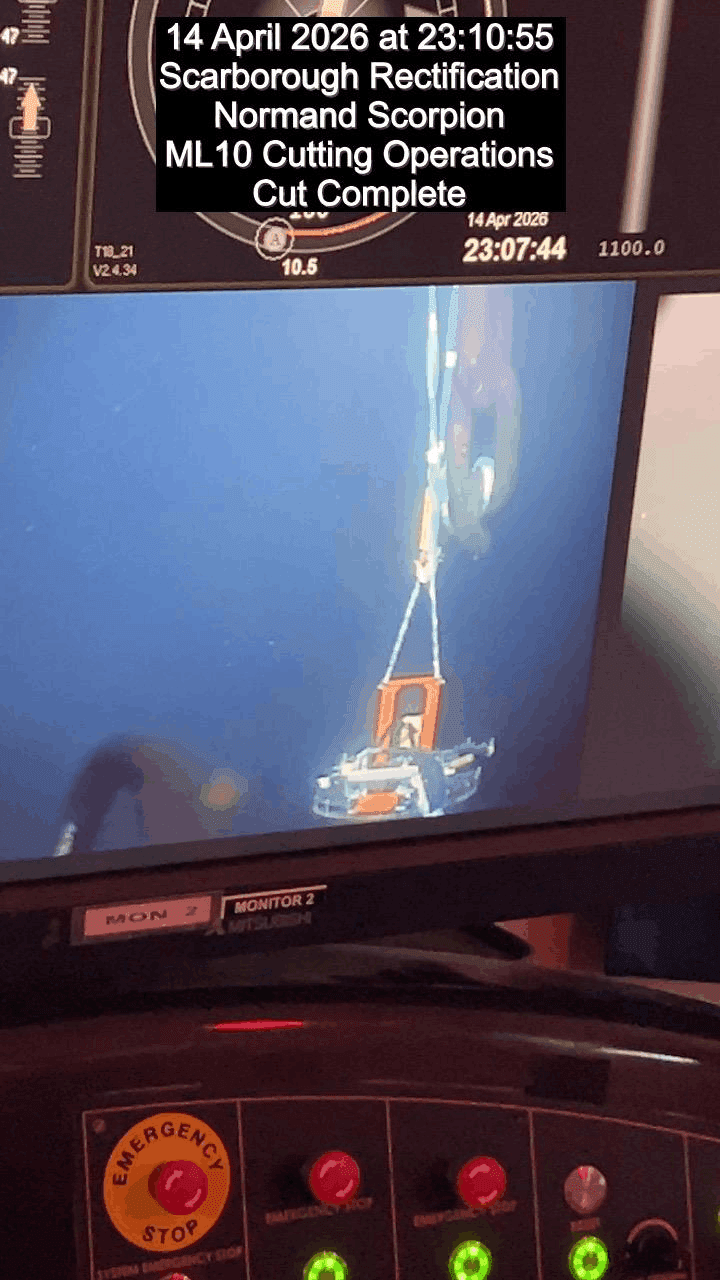

See It In Action
Small OD Pipe Cutting
