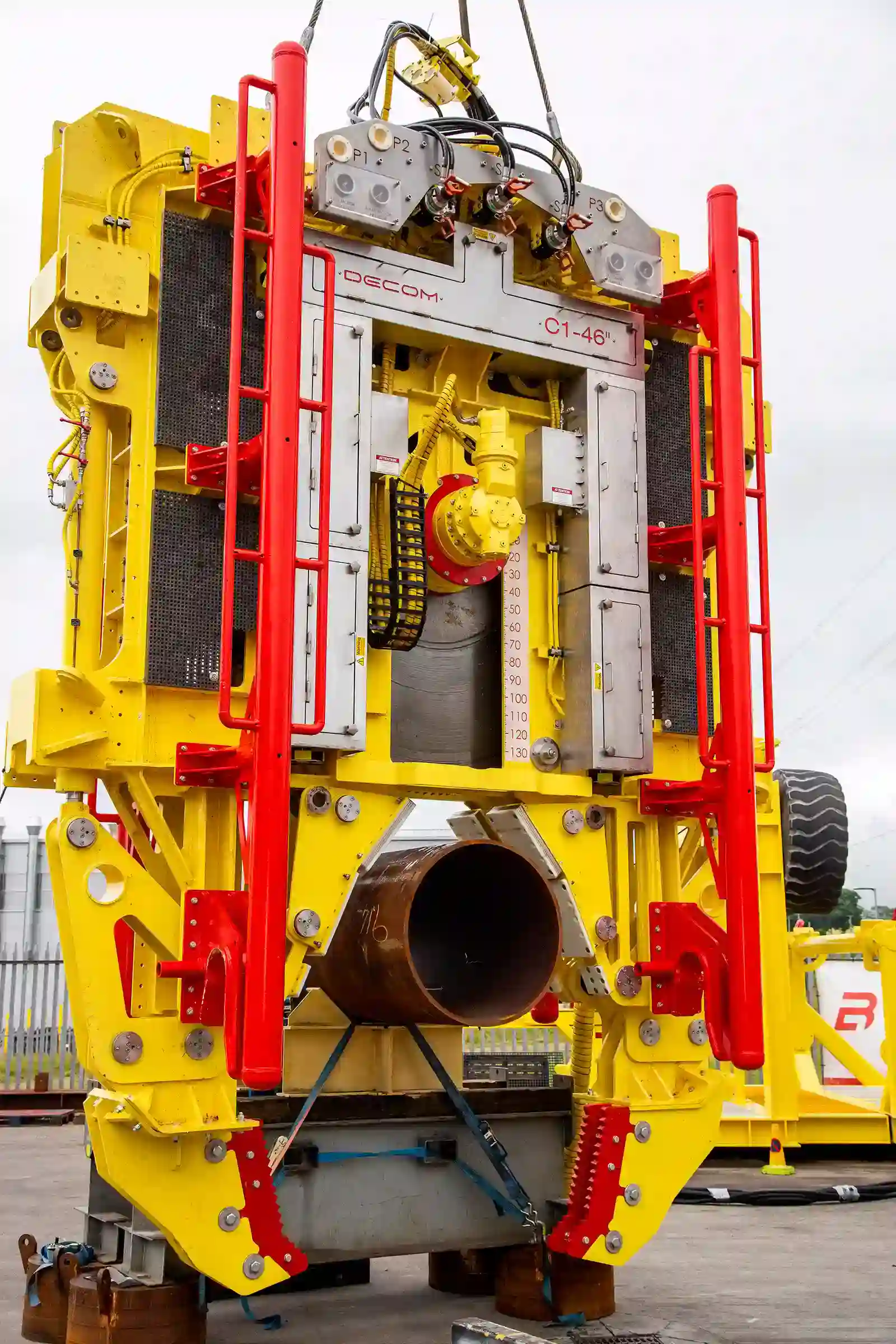

C1-46 Chopsaw
Unveiling the C1-46:
A Giant in Chop Saw Technology
The C1-46 Chop Saw was developed in response to client-led needs, setting new standards in subsea cutting technology. Designed to handle large OD pipelines up to 46” in diameter, including those with concrete coating and steel rebar, the C1-46 is a game-changer in its field.
This saw boasts key features such as DNV certification for the highest safety and performance standards, rapid customisation of clamps to adapt to various project requirements, and hot stab integration for seamless and efficient operation. Its safe and robust landing frame ensures stability and security during operations, while blade innovation with segmented tip technology reduces deck handling and enhances cutting efficiency.
Benefits
Cost Efficiency:
Capable of multiple cuts per blade (20 to 100 cuts, depending on application), reducing operational costs significantly.
Operational Flexibility:
Can perform multiple cuts subsea or in wet storage without returning to the surface, enhancing operational efficiency.
Customisation:
Offers configurable setups and settings to match specific project requirements and work scopes.
Versatility:
Features a customisable clamping system for securely gripping a wide range of shapes and sizes.
Ease of Maintenance:
Long-lasting blades mean only damaged or worn tips need replacement, with quick maintenance ensuring minimal downtime.
Uses
Pipeline Maintenance:
Ideal for cutting coated or bare pipelines up to 46” in diameter.
Structural Cutting:
Suitable for cutting jacket structures, box sections, and casings.
Mooring Chain Cutting:
Capable of handling mooring chains efficiently.
Solid Bar Cutting:
Efficient for cutting solid bars of various materials.
Umbilicals and Cable Cutting:
Designed for precise cutting of umbilicals and cables.
Features
- Cutting Capacity:
Handles pipe sizes from 20” to 46” in diameter - Cut Quality:
Provides fast and clean cuts with market-leading cut times, optimized for efficiency. - Adaptability:
Highly adaptable to suit various surroundings and structures, with multiple lifting points for versatile deployment angles. - Operational Modes:
Suitable for both topside and ROV operations, ensuring flexibility in deployment and use. - Water Cooling System:
Incorporates a unique water cooling system for surface cutting applications.
C1-46 Chopsaw
Unveiling the C1-46:
A Giant in Chop Saw Technology
The C1-46 Chop Saw was developed in response to client-led needs, setting new standards in subsea cutting technology. Designed to handle large OD pipelines up to 46” in diameter, including those with concrete coating and steel rebar, the C1-46 is a game-changer in its field.
This saw boasts key features such as DNV certification for the highest safety and performance standards, rapid customisation of clamps to adapt to various project requirements, and hot stab integration for seamless and efficient operation. Its safe and robust landing frame ensures stability and security during operations, while blade innovation with segmented tip technology reduces deck handling and enhances cutting efficiency.
Benefits
Cost Efficiency:
Capable of multiple cuts per blade (20 to 100 cuts, depending on application), reducing operational costs significantly.
Operational Flexibility:
Can perform multiple cuts subsea or in wet storage without returning to the surface, enhancing operational efficiency.
Customisation:
Offers configurable setups and settings to match specific project requirements and work scopes.
Versatility:
Features a customisable clamping system for securely gripping a wide range of shapes and sizes.
Ease of Maintenance:
Long-lasting blades mean only damaged or worn tips need replacement, with quick maintenance ensuring minimal downtime.
Uses
Pipeline Maintenance:
Ideal for cutting coated or bare pipelines up to 46” in diameter.
Structural Cutting:
Suitable for cutting jacket structures, box sections, and casings.
Mooring Chain Cutting:
Capable of handling mooring chains efficiently.
Solid Bar Cutting:
Efficient for cutting solid bars of various materials.
Umbilicals and Cable Cutting:
Designed for precise cutting of umbilicals and cables.
Features
- Cutting Capacity:
Handles pipe sizes from 20” to 46” in diameter - Cut Quality:
Provides fast and clean cuts with market-leading cut times, optimized for efficiency. - Adaptability:
Highly adaptable to suit various surroundings and structures, with multiple lifting points for versatile deployment angles. - Operational Modes:
Suitable for both topside and ROV operations, ensuring flexibility in deployment and use. - Water Cooling System:
Incorporates a unique water cooling system for surface cutting applications.
Cutting Capacity
%
Success Rate
Cut Times

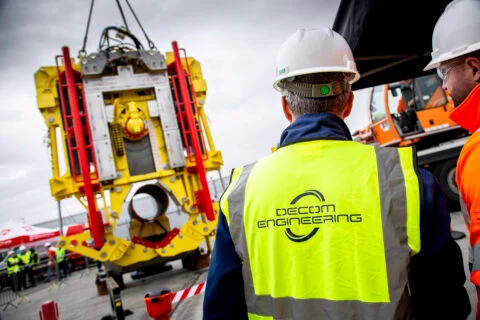

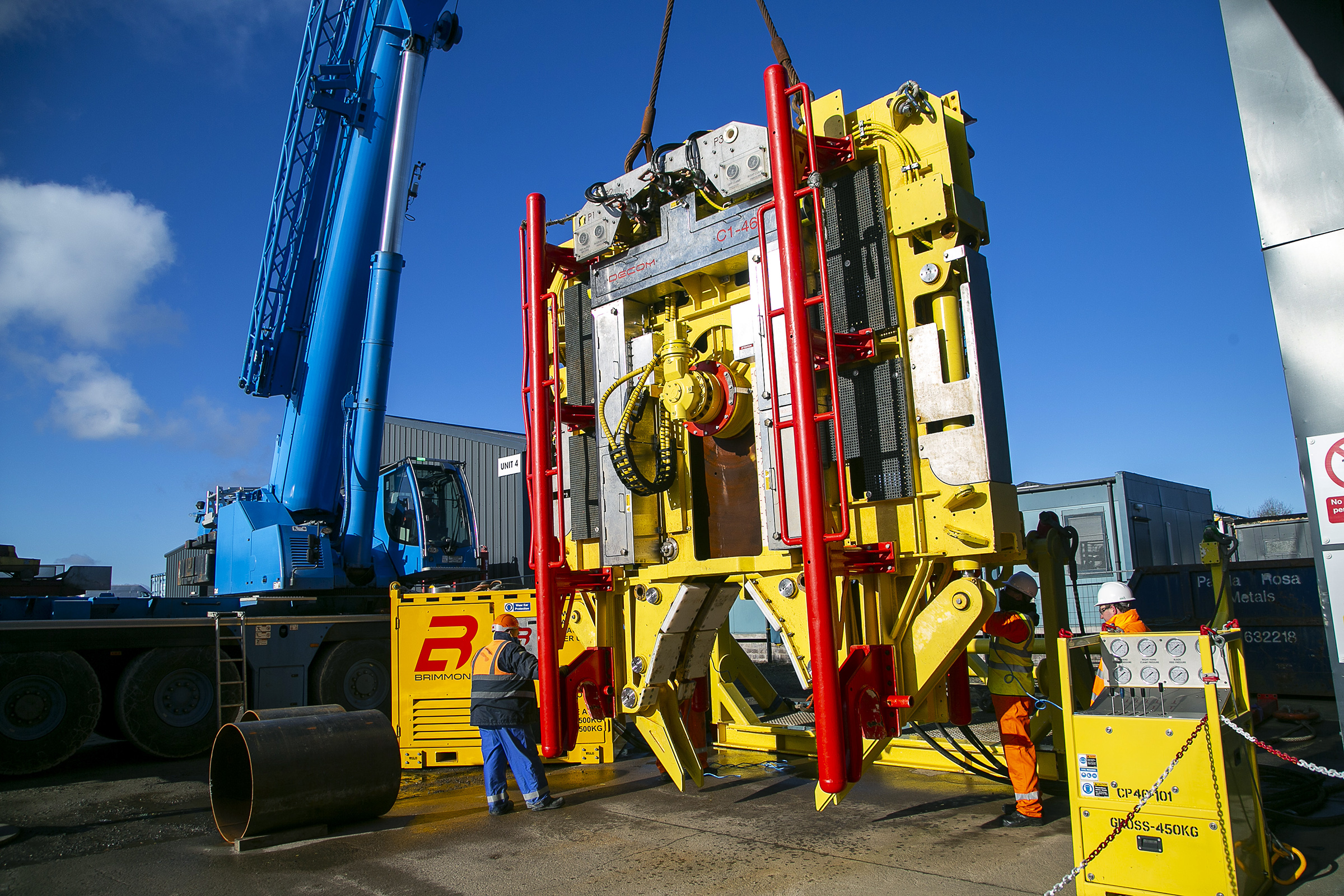

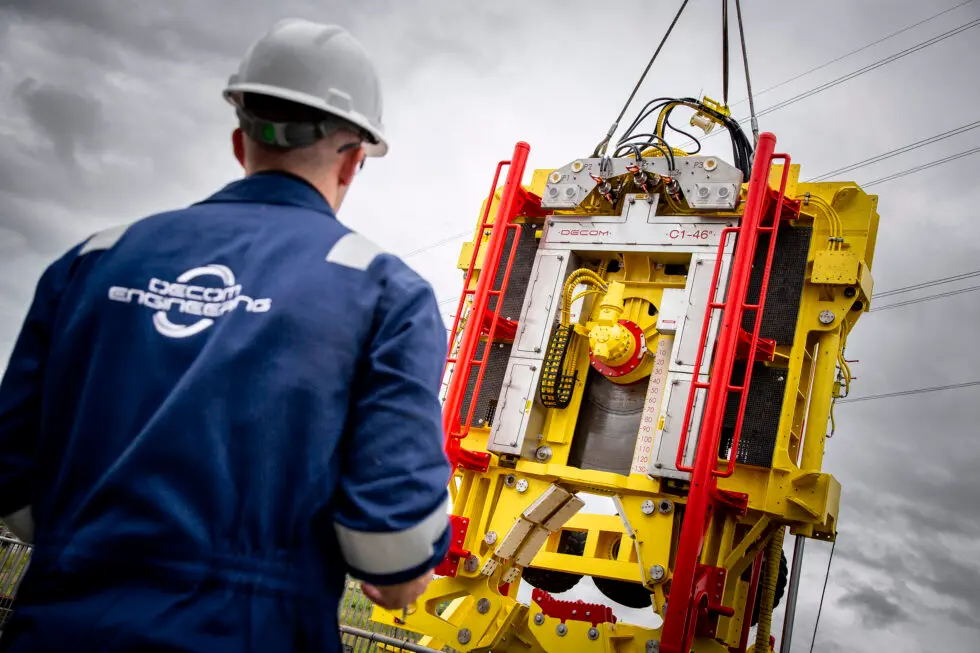

The C1-46 Chop Saw is a marvel of subsea engineering, designed, developed, and deployed in under 6 months. Powered from topside using a Hydraulic Power Unit (HPU), Reeler, Hot Stabs, and Control Panel, it’s ready to tackle the toughest subsea cuts. The C1-24 saw, operated from an ROV, was also utilised for specific tasks, showcasing versatility in various operations.
On its first deployment, the C1-46 exceeded all expectations, completing 79 cuts with a remarkable 100% success rate. Averaging 15 cuts per blade tip before requiring a change, it significantly reduced the need for surface recovery. Traditional methods would have necessitated longer cut times and frequent blade replacements, but the C1-46 averaged cuts in just 47 minutes, with some completed in as little as 20 minutes.
Our innovative approach also extended to reducing seabed dredging time. By modifying the saw’s clamps, we cut dredge time from 3.5 hours to just 30 minutes, achieving substantial time savings and operational efficiency.
Cutting Capacity
%
Success Rate
Cut Times
The C1-46 Chop Saw is a marvel of subsea engineering, designed, developed, and deployed in under 6 months. Powered from topside using a Hydraulic Power Unit (HPU), Reeler, Hot Stabs, and Control Panel, it’s ready to tackle the toughest subsea cuts. The C1-24 saw, operated from an ROV, was also utilised for specific tasks, showcasing versatility in various operations.
On its first deployment, the C1-46 exceeded all expectations, completing 79 cuts with a remarkable 100% success rate. Averaging 15 cuts per blade tip before requiring a change, it significantly reduced the need for surface recovery. Traditional methods would have necessitated longer cut times and frequent blade replacements, but the C1-46 averaged cuts in just 47 minutes, with some completed in as little as 20 minutes.
Our innovative approach also extended to reducing seabed dredging time. By modifying the saw’s clamps, we cut dredge time from 3.5 hours to just 30 minutes, achieving substantial time savings and operational efficiency.
The Range
What else is in our C1 Range?
From the compact yet powerful C1-12 to the robust C1-24 and the industry-leading C1-46, our range encompasses a variety of saws meticulously engineered to meet your pipeline maintenance needs. The C1-32 Lightweight, launching in July 2024, brings powerful cutting capabilities in a more compact, easy-to-handle design and is buoyant for enhanced subsea maneuverability. The C1-16 Ultra Light, the first of its kind, launching in September 2024, is designed for ultimate portability and efficiency, perfect for cutting chains and risers in tension. Whatever your requirements, trust Decom Engineering to deliver cutting-edge solutions tailored to your specific challenges.

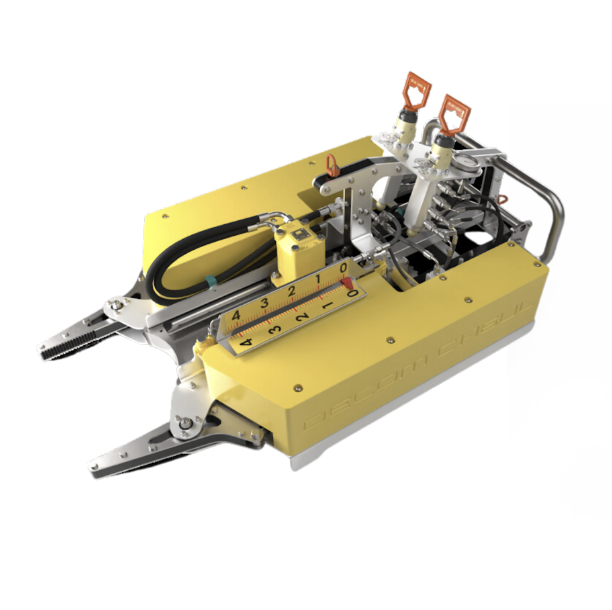

C1-12 Chopsaw
Topside or ROV operated cutting tool
C1-16UL Chopsaw
Topside or ROV operated cutting tool

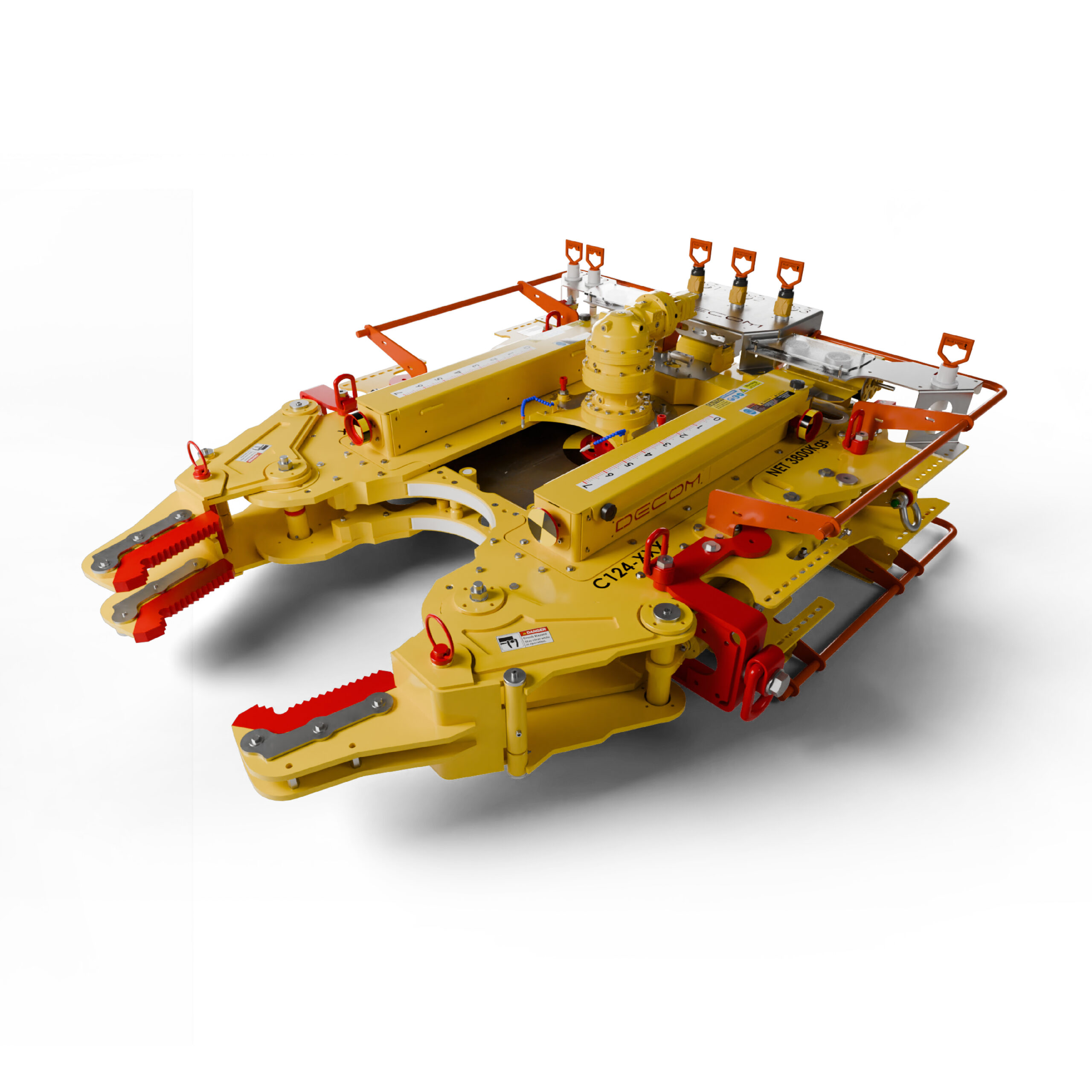

C1-24 Chopsaw
Topside or ROV operated cutting tool

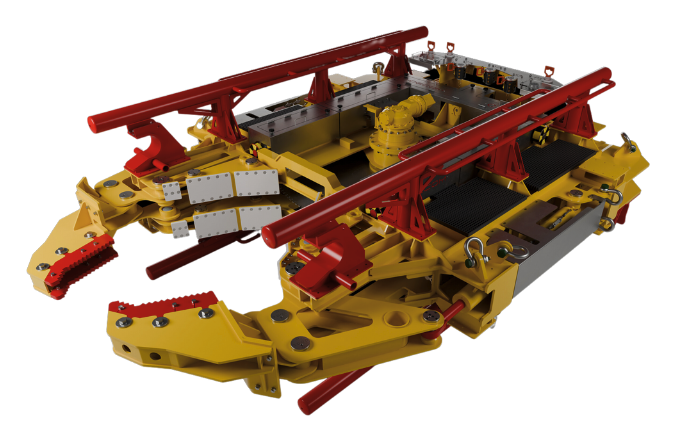

C1-32 Chopsaw
